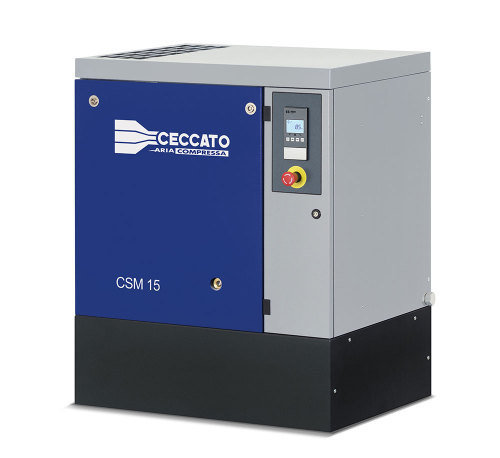

Base Mounted Version
Especially recommended for installations near the place of use or the expansion of existing systems.
The elecrocompressor's main components are: air suction filter, compressor, electric motor, oli filter and cooler, air cooling system, electrical panel for power-on and adjustment, support base and sound-proof case.

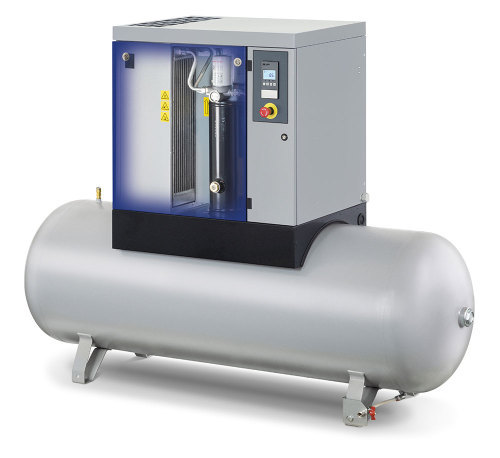

Tank Mounted Version
Particularly recommended for new or stand-alone installations where there is a need for compressed air with a low noise level.
The unit consists of an electrocompressor on a fixed, 270 or 500 litre tank.

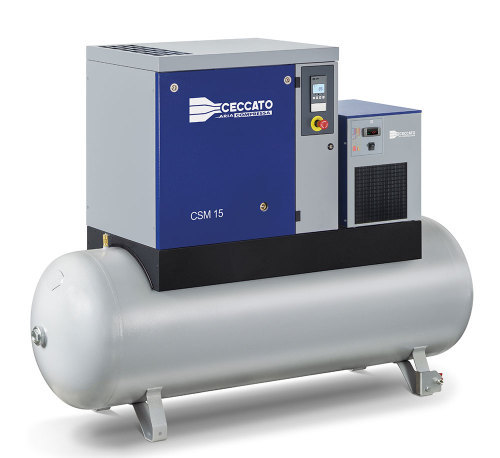

Dry Version
Especially recommended for installations with compressed air demands with low dew point.
The compression unit is made up of electrocompressor, tank and refrigerating dryer with gas R134a with indicator of the dew point and timed condensation.
CSM 7.5-20hp Oil-Injected screw Compressor Belt driven
Compressed air drives most of the businesses, consequently choosing the right compressor is one of the most important decisions your company can make. Our CSM range is a robust and reliable belt driven oil-injected screw compressor - a first-class product that can be easily equipped with an air receiver, a refrigerant dryer, pre and post filters, offering you a compact and complete solution for your business.
The CSM legendary reputation was built throughout the years based on Ceccato’s constant investment in new technologies and quality improvement, being today a safe choice that you will never regret.
Bring fresh air into your company and enjoy the performance, simplicity and the reliability that only Ceccato can offer.
| Model | Motor Size | Pressure Range | Noise Level | |
| (kW) | (Hp) | (bar) | (db(A)) | |
| CSM 7.5 | 5.5 | 7.5 | 8 - 10 | 64 |
| CSM 10 | 7.5 | 10 | 8 - 13 | 65 |
| CSM 15 | 11 | 15 | 8 - 13 | 69 |
| CSM 20 | 15 | 20 | 8 - 13 | 71 |
