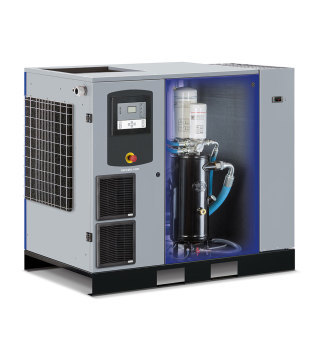

Base Mounted Version
Especially recommended for installations near the place of use or the expansion of existing systems.
The elecrocompressor's main components are: air suction filter, compressor, electric motor, oli filter and cooler, air cooling system, electrical panel for power-on and adjustment, support base and sound-proof case.

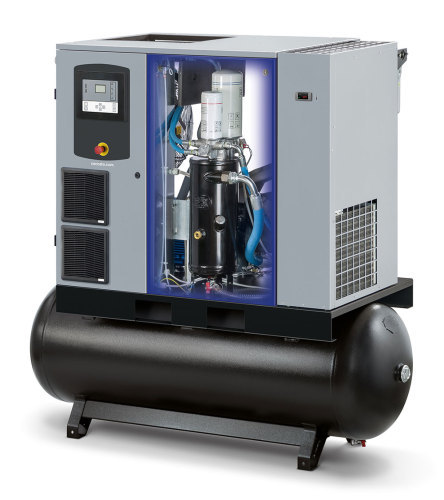

Tank Mounted Version
Particularly recommended for new or stand-alone installations where there is a need for compressed air with a low noise level.
The unit consists of an electrocompressor on a fixed, 270 or 500 litre tank.

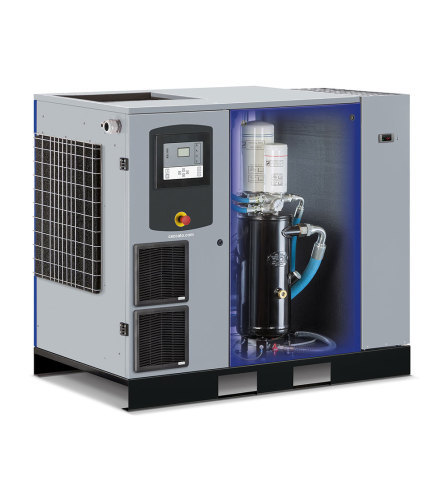

Fully Featured
Especially recommended for installations with compressed air demands with low dew point.
The compression unit is made up of electrocompressor, tank and refrigerating dryer with gas R134a with indicator of the dew point and timed condensation.
DRB 20 - 34 Fixed Speed Oil-Injected Screw Compressors
Compressed air drives your company. Consequently, choosing the right compressor is crucial. Going for our DRB range of highly efficient and flexible oil-injected screw compressors is a choice you will not regret. Bring some fresh air into your company and enjoy the strong performance and high efficiency that come with it.
| Model | Motor Size | Pressure Range | Noise Level | |
| (kW) | (Hp) | (bar) | (db(A)) | |
| DRB 20 | 15 | 20 | 7.5 - 13 | 67 |
| DRB 25 | 18.5 | 25 | 7.5 - 13 | 68 |
| DRB 29 | 22 | 30 | 7.5 - 13 | 69 |
| DRB 34 | 26 | 35 | 7.5 - 13 | 71 |
