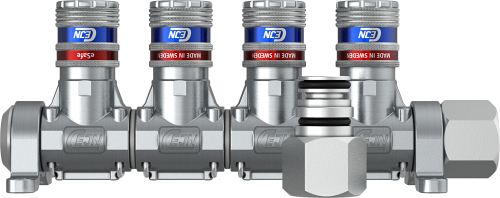

Multi-Link 4, 320 series, (eSafe) 1/2" BSPF
Specifications
| Nominal flow diameter | 7.6 mm (0.3") |
| Air flow | 2,250 l/min (79.4 CFM) |
| Max. working pressure | 16 bar (232 PSI) |
| Min. burst pressure | 140 bar (2,030 PSI) |
| Connection force | 86 N |
| Temperature range | -20°C to +100°C (-4°F to +212°F) |
| Material coupling | Zinc-plated steel/brass |
| Material nipple | Hardened zinc-plated steel |
| Standards | CEJN Original, Eurostandard 7.4 mm |
| Markets | Global |
Flow capacity is measured at 6 bar (87 PSI inlet pressure, and pressure drop at 0.5 bar (7 PSI)
