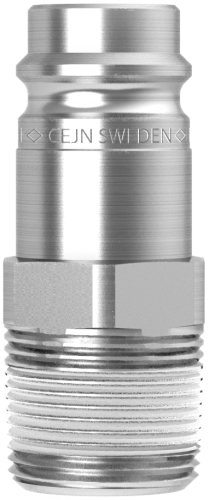

Nipple, 410 series, 1/2" BSPM
This item also available in retail friendly hang sell packaging under item code 704105155
Specifications
| Nominal flow diameter | 10.4 mm (0.4") |
| Air flow | 4,000 l/min (141.2 CFM) |
| Max. working pressure | 16 bar (232 PSI) |
| Min. burst pressure | 140 bar (2,030 PSI) |
| Temperature range | -20°C to +100°C (-4°F to +212°F) |
| Material nipple | Hardened zinc-plated steel |
| Standards | CEJN Original, Eurostandard 10.4 mm |
| Markets | Global |
Flow capacity is measured at 6 bar (87 PSI inlet pressure, and pressure drop at 0.5 bar (7 PSI)
