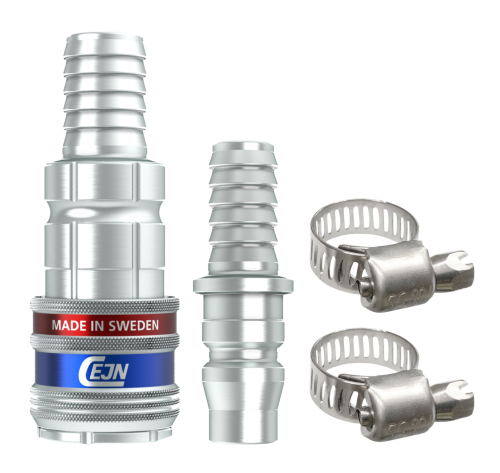

Starter kit, 315 series, (eSafe), 12mm PVC - coupling, nipple & 2 x clamps
Specifications
| Nominal flow diameter | 7.5 mm (0.3") |
| Air flow | 1,950 l/min (68.8 CFM) |
| Max. working pressure | 16 bar (232 PSI) |
| Min. burst pressure | 140 bar (2,030 PSI) |
| Connection force | 86 N |
| Temperature range | -20°C to +100°C (-4°F to +212°F) |
| Material coupling | Zinc-plated steel/brass |
| Material nipple | Hardened zinc-plated steel |
| Standards | Asian standard, 7.5mm |
| Markets | Asia, Australia, Italy, South America |
Flow capacity is measured at 6 bar (87 PSI inlet pressure, and pressure drop at 0.5 bar (7 PSI)
